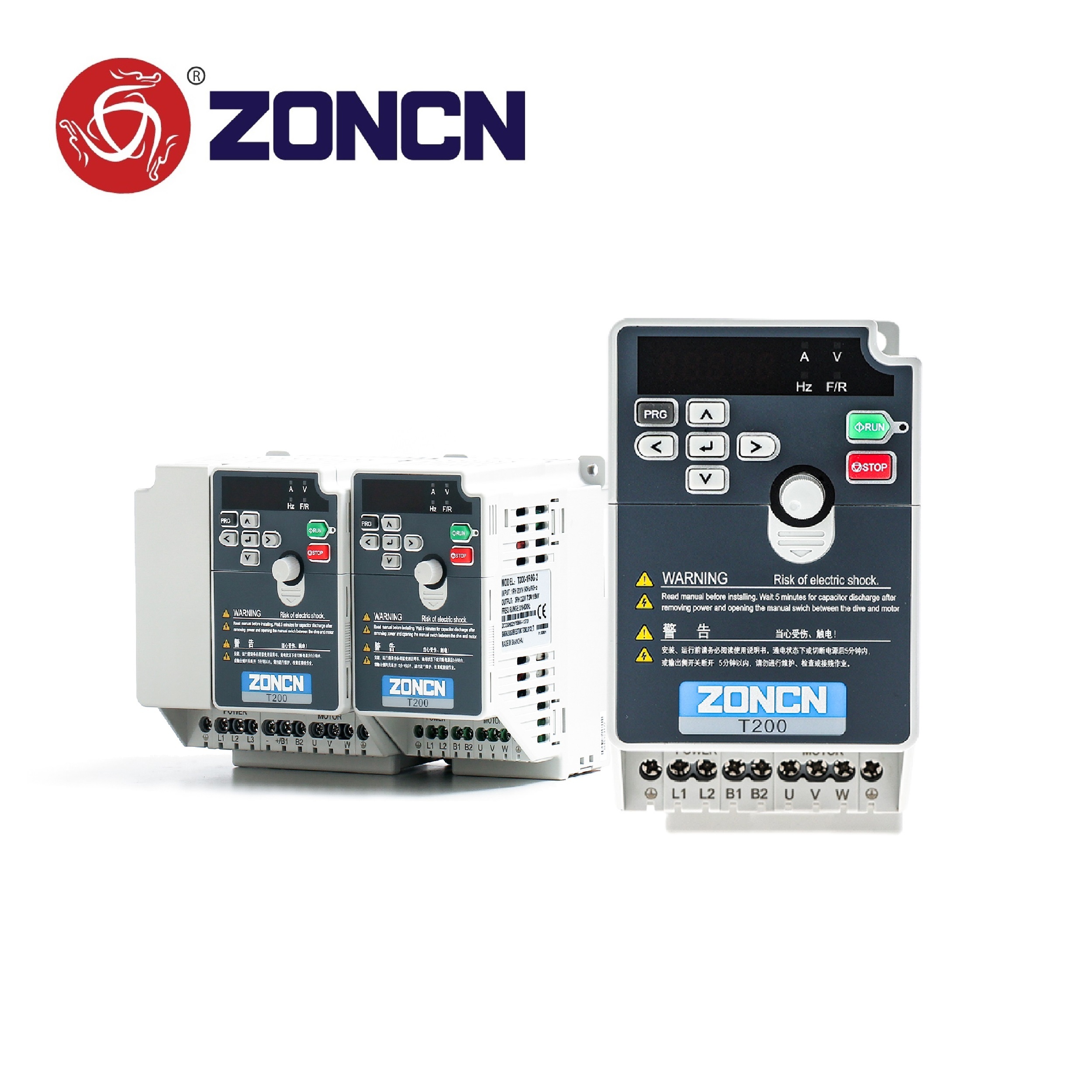

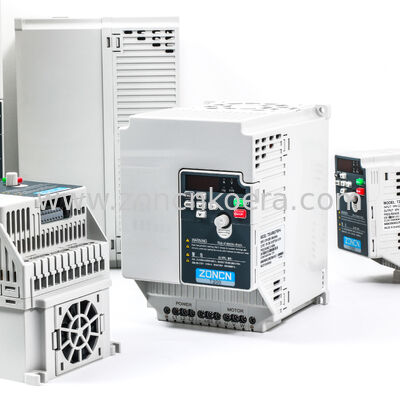

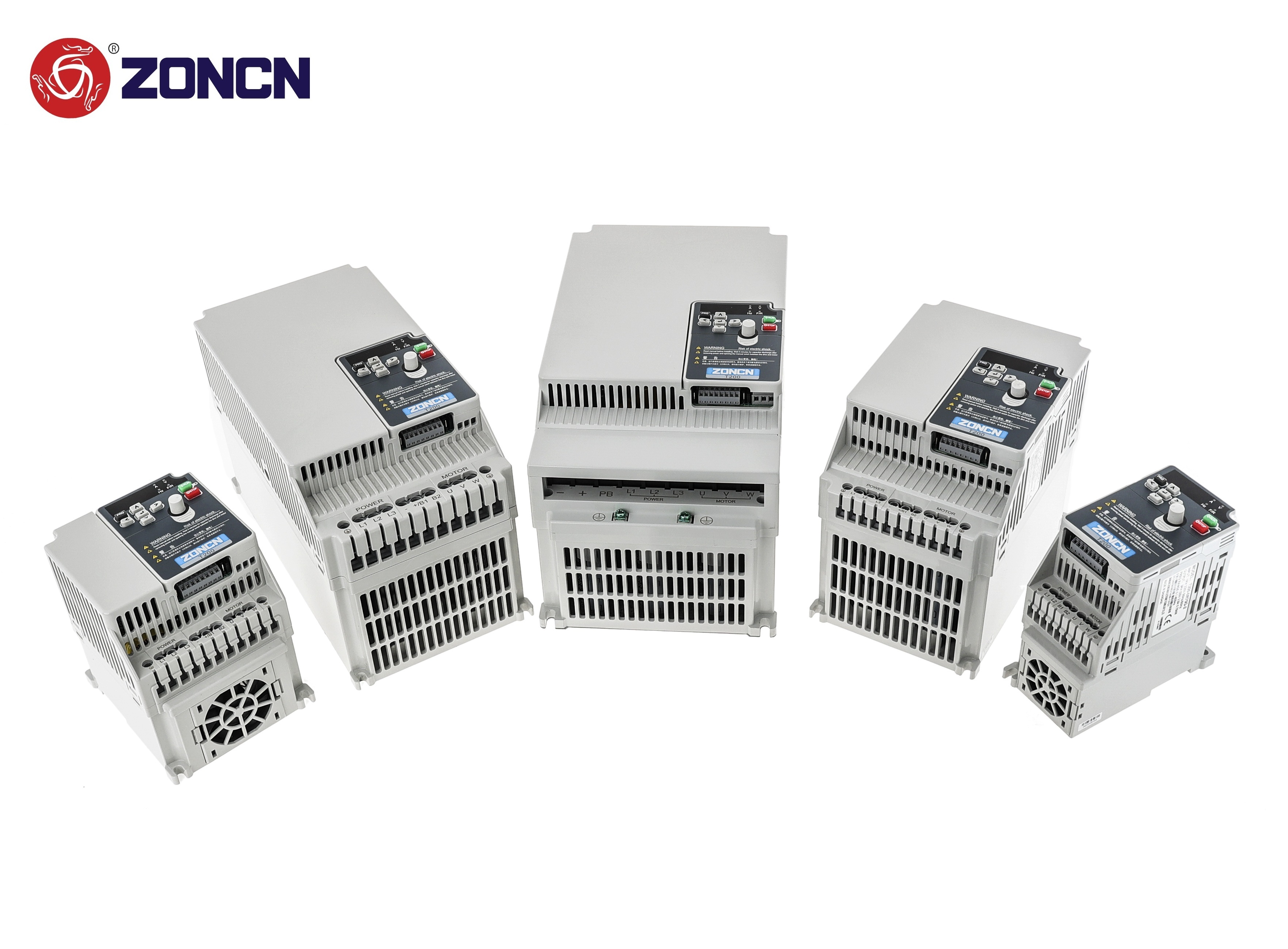

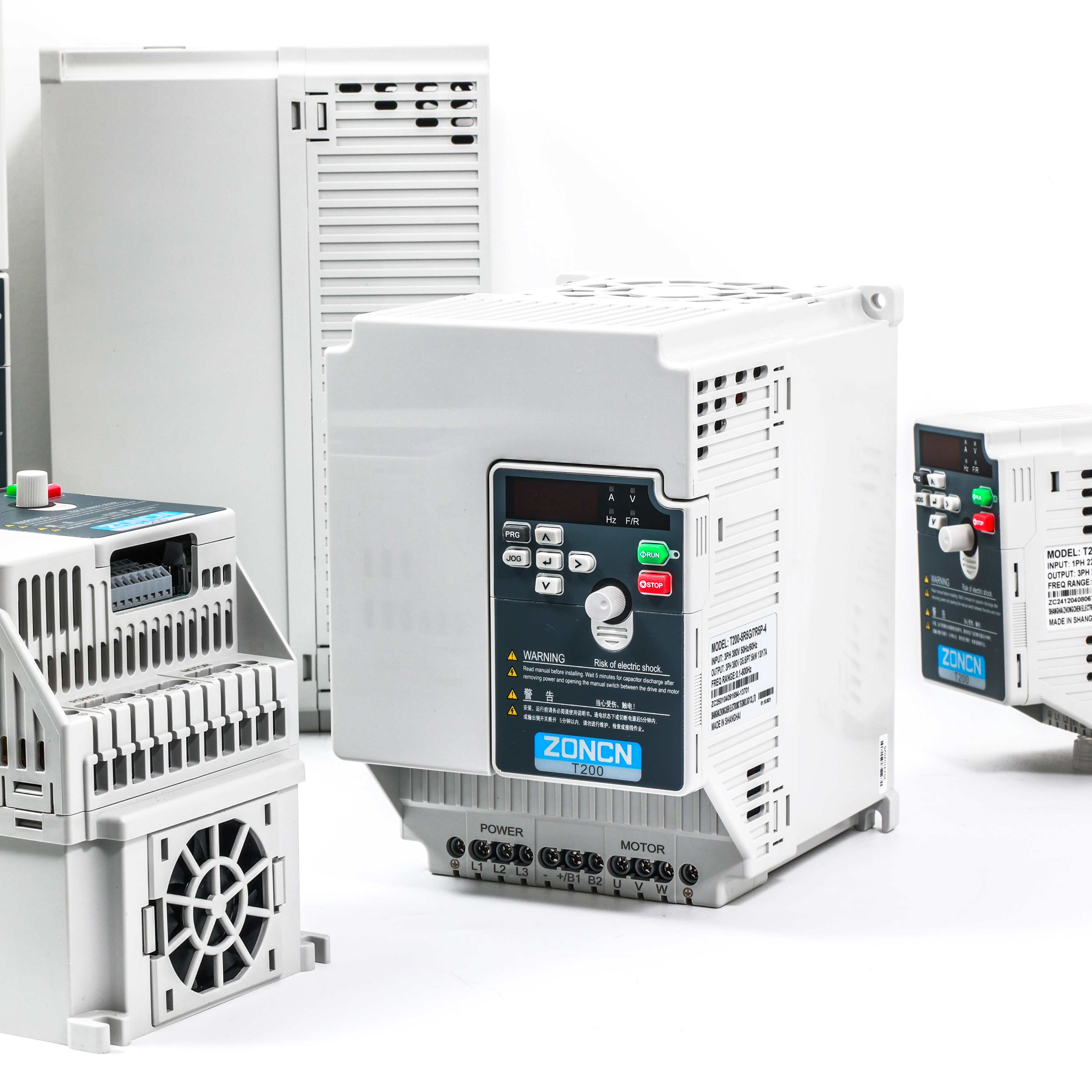

ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function

ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function
ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function
ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function
基本情報
起源の場所: 中国
ブランド名: ZONCN
証明: CE, KC, ISO9001
モデル番号: T200
最小注文数量: 1
価格: To be negotiable
Packaging Details: box inside, carton outside
受渡し時間: 通常は15日以内に
支払条件: T/T、ウェスタンユニオン
供給の能力: 月額100000
ベストプライス 接触
タイプ: VFDドライブ 製品名: 変速駆動
Series: multi-function T200 series Input Voltage: 220v 1ph/220v3ph; /380v/440v/480v 3ph
Power range: 0.4kw-220kw ブランド: zoncn
OEM/ODM: はい コミュニケーション: RS485/EtherCAT/Profibus/Profinet/Canopen
frequency range: 0.1-599HZ 制御モード: ベクトル制御
STO: はい 24VDC: はい
ハイライト:

0.4kW-220kW Power Range VFD Drive

,

Built-in EMC Filter Variable Speed Drive

,

STO Function AC Frequency Inverter

ZONCN T200 Variable speed Drive 220v 380v VFD Drive AC frequecy inverter





ZONCN T200 VFD Features

  1. Multi-control ModesThe ZONCN T200 VFD drive supports V/F, sensorless vector and closed-loop vector control, making the VFD drive adaptable to diverse motor control needs. The VFD drive delivers stable performance whether for simple speed regulation or high-precision torque control.
  2. Strong Starting TorqueThis VFD drive provides 150% rated torque at 0.5Hz, solving startup difficulties for light-load equipment. The VFD drive ensures smooth and reliable operation even under low-frequency conditions, outperforming many standard VFD drive models.
  3. Wide Power CompatibilityThe cost-effective VFD drive covers a power range of 0.4kW–220kW and supports 220V/380V single-phase and three-phase inputs. The VFD drive fits small and medium-sized industrial devices, eliminating the need for multiple VFD drive selections for different equipment.
  4. Built-in EMC FilterThe VFD drive is equipped with an integrated EMC filter, which minimizes electromagnetic interference. The VFD drive protects other nearby electronic devices, ensuring the entire industrial system runs without signal disruption.

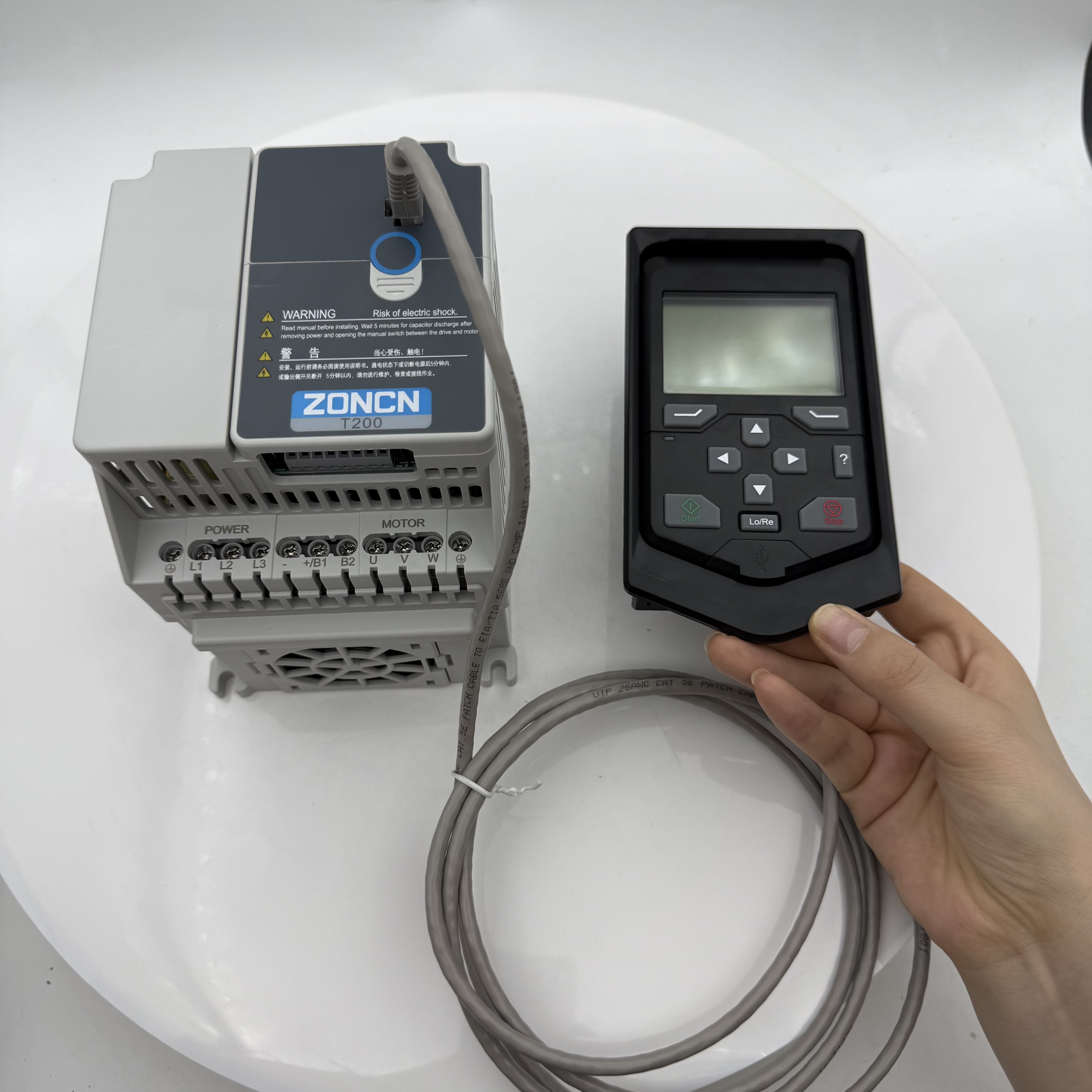

  5. User-friendly DesignThe compact VFD drive features a detachable RJ45 keypad and DIN-rail mounting, enabling quick installation and operation. The VFD drive’s intuitive interface reduces training time for operators, making the VFD drive easy to use even for beginners.
  6. Comprehensive ProtectionThe reliable VFD drive includes STO function and multiple protections against overcurrent, overvoltage, overheating and short circuits. The VFD drive prevents equipment damage and ensures safe long-term operation in harsh industrial environments.
  7. Seamless System IntegrationThe versatile VFD drive supports Modbus TCP and EtherCAT protocols, allowing the VFD drive to integrate smoothly into existing automation systems. The VFD drive enables centralized control, boosting overall production efficiency.
  8. Certified QualityThe durable VFD drive holds CE and ISO 9001 certifications, meeting international quality standards. The VFD drive comes with an 18-month warranty, making the VFD drive a trustworthy choice for global industrial buyers.

About ZONCN

ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function 0

ZONCN T200 VFD Drive Variable Speed Drive with 0.4kW-220kW Power Range Built-in EMC Filter and STO Function 1



T200 series VFD aplications



The ZONCN T200 series is a cost-effective, compact inverter tailored for general industrial use. Boasting multi-control modes—V/F, sensorless vector and closed-loop vector control—it delivers 150% rated torque at 0.5Hz, solving light-load startup issues effortlessly. Equipped with a built-in EMC filter, it minimizes electromagnetic interference, while STO function and overcurrent/overheating protections ensure safe, stable operation. Its detachable RJ45 keypad and DIN-rail mount design enable quick installation and operation, with seamless integration into automation systems via Modbus and EtherCAT.

In applications, it excels in driving fans, pumps and small compressors, cutting energy consumption by replacing traditional valve control. It also regulates speed for sewing, packaging and conveying equipment in light industry, and powers small processing machinery like drills, boosting production accuracy and efficiency. Certified with CE and ISO 9001, it is a trusted choice for diverse industrial scenarios.
