VFD、Servo と様々なモータードライバーの生産に焦点を当て
年間販売量 900,000 台以上
電力範囲:0.4kw~2000kw,電圧範囲:110v~10000v
サービス 配送 ネットワーク は 世界 を 覆っ て い ます
| 起源の場所: | 中国上海 |
|---|---|
| ブランド名: | ZONCN Vfd |
| 証明: | CE+KC |
| モデル番号: | Z2000シリーズ Vfd |
| ドキュメント: | ZONCN Z2000(T) English Cata...og.pdf |
| 最小注文数量: | 1台 |
| パッケージの詳細: | カートンパッキング； |
| 受渡し時間: | 7-30勤務日 |
| 支払条件: | T/T、Western Union、PayPal |
| 供給の能力: | 月に100000ユニット |
| 保証: | 保証18か月の | 力: | 22kW Vfd |
|---|---|---|---|
| 電圧: | 480V 440V 415V 380V 表示装置 | タイプ: | ACドライブ vfd |
| モデル: | Z2400-22G/30P 表示装置 | 入力頻度: | 50/60Hz VFD |
| 周波数範囲: | 0-600Hz VFD | 応用: | 繊維機械用VFD |
| VF曲線: | 直線V/F曲線 多点V/F曲線 N電力のV/F曲線 | 速度範囲: | 1100 (SVC) |
| 内蔵EMCフィルター: | はい | 材料: | プラスチックと金属 |
| ハイライト: | 380V 22KW AC variable frequency drive,low voltage VFD inverter with Modbus,blower compatible variable frequency converter |
||

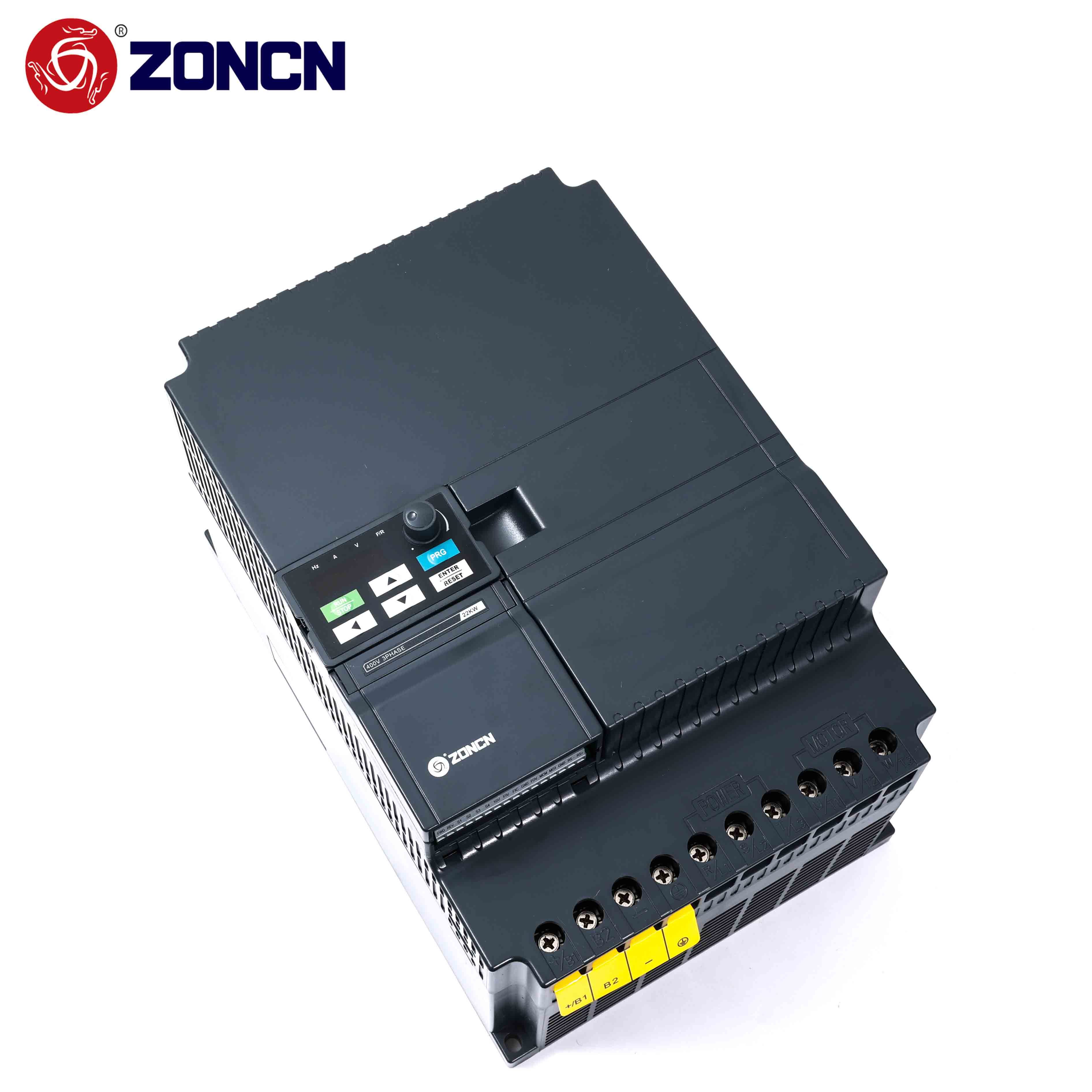

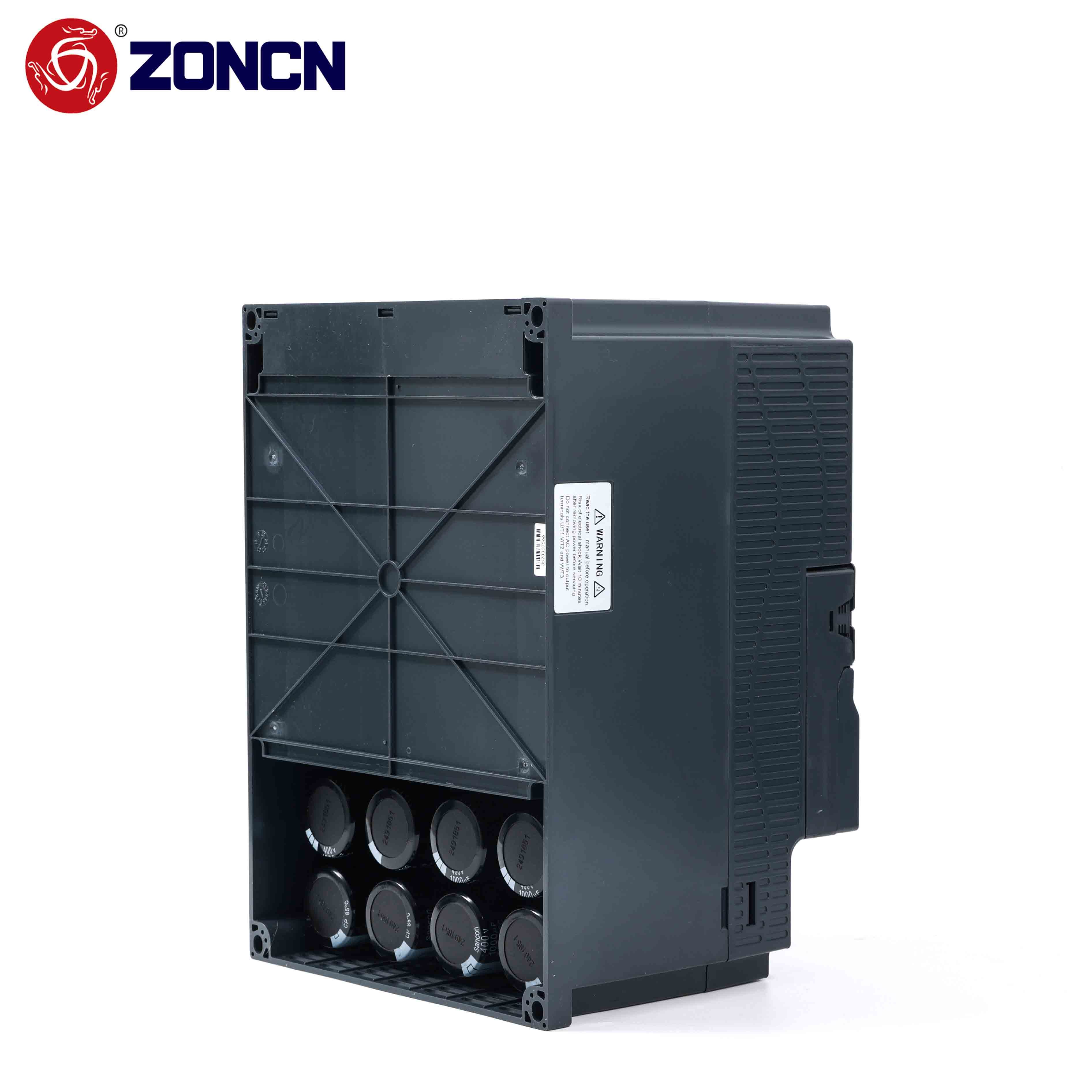

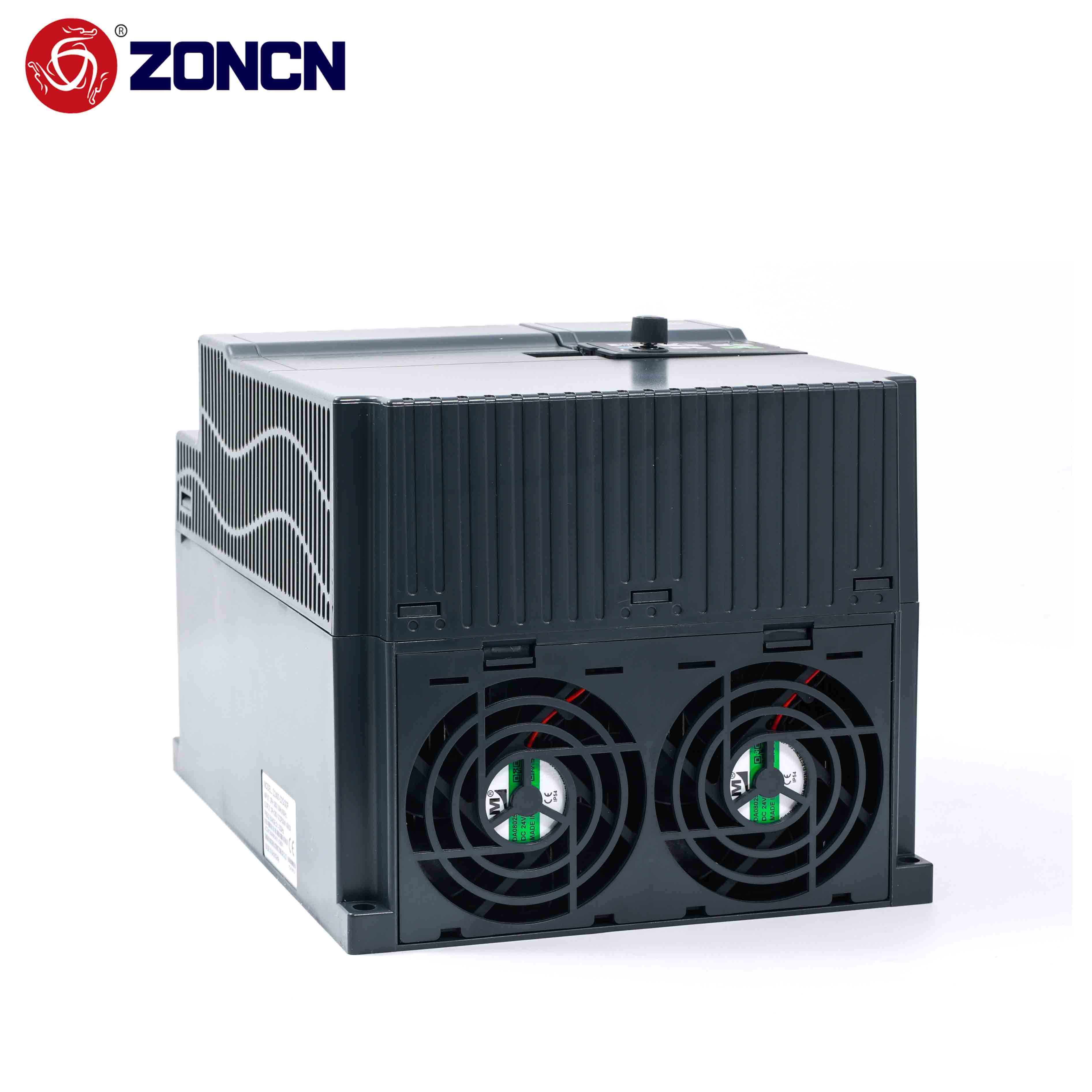

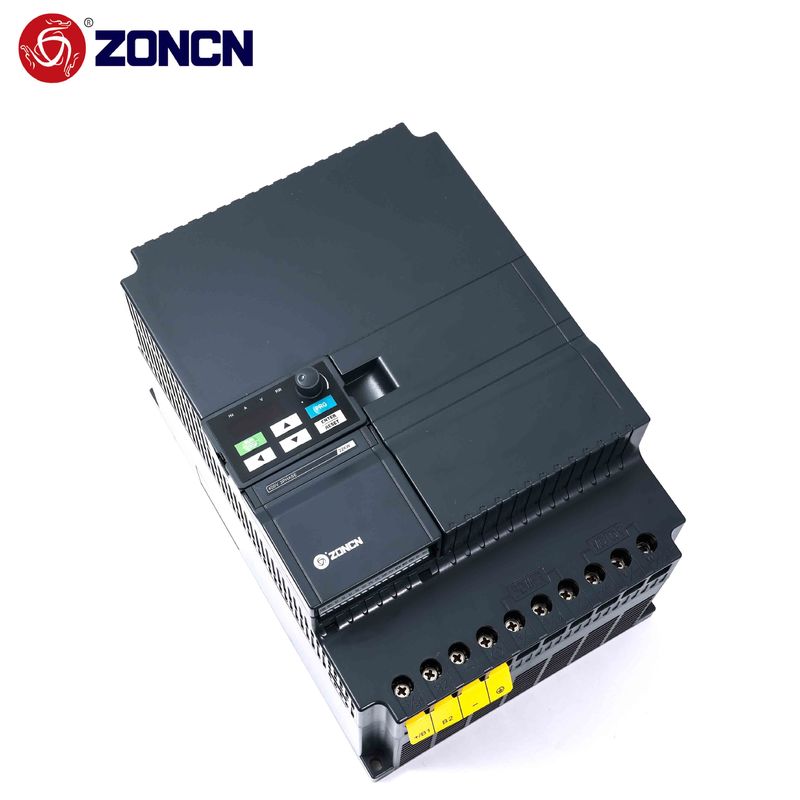

22KW 380V High-performance Frequency Converter
1:Introduction to VFD Functional Features
- Open-loop vector control, VF control；
- Easy to debug, with excellent performance；
- Optional built-in EMC filter, supports MODBUS RS485 communication, supports MODBUS RTU, and optional EtherCAT communication；
- Support permanent magnet synchronous motors；
- It has an overload capacity of 150% of rated current for a continuous 60 seconds and 180% of rated current for a continuous 3 seconds, and can handle frequent impact loads；
- Phase loss protection, overheat protection, overvoltage protection and other protection functions；
- Supports 220V input and 380V output; supports 110V; supports 380V; supports 440V; supports 480V

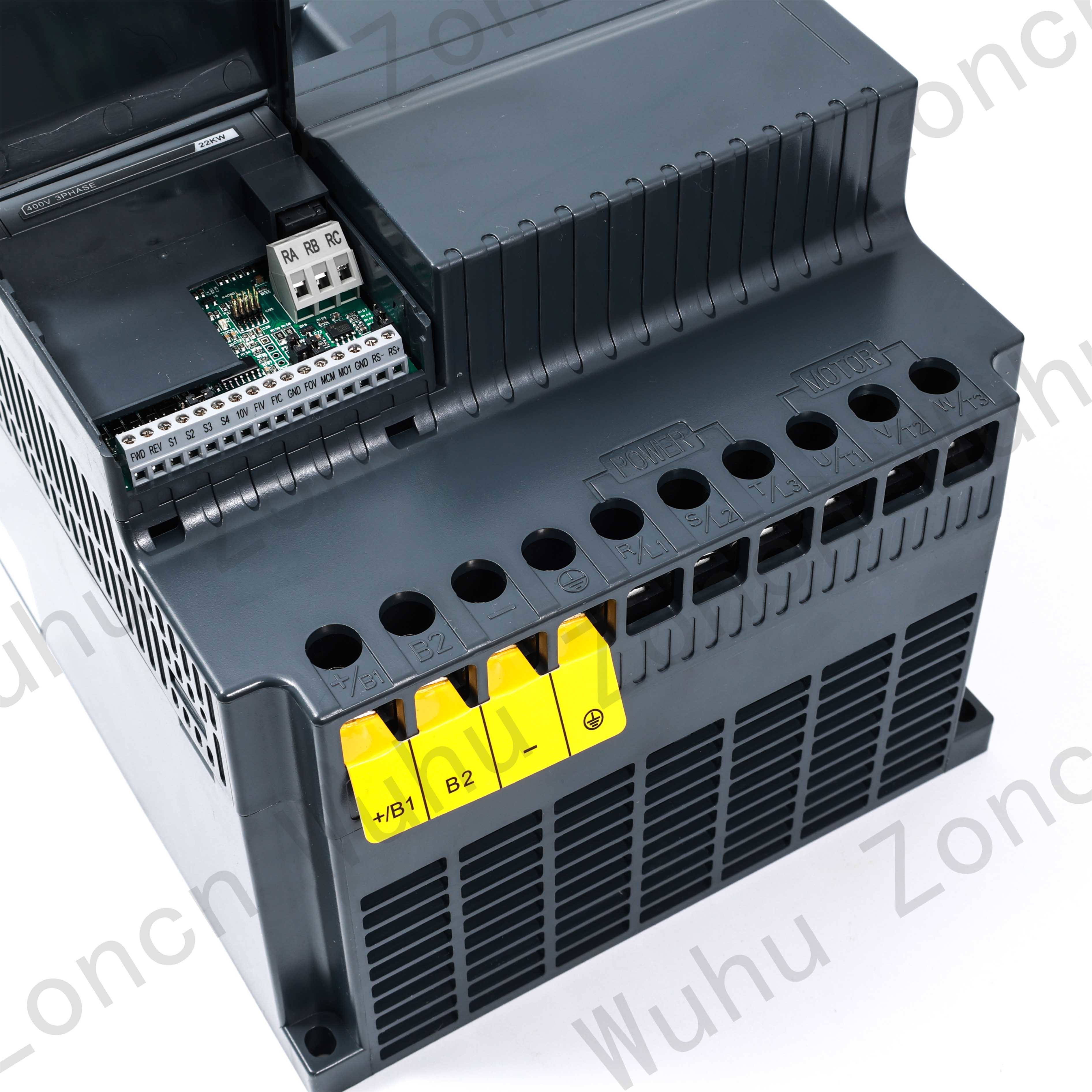

- 0.4 - 37KW with built-in braking unit; 45 - 160KW with optional built-in braking unit；
- For power ratings above 22KW, an internal DC reactor is optional. This can help mitigate the impact of unstable voltage；
- NPN supported, PNP optional；

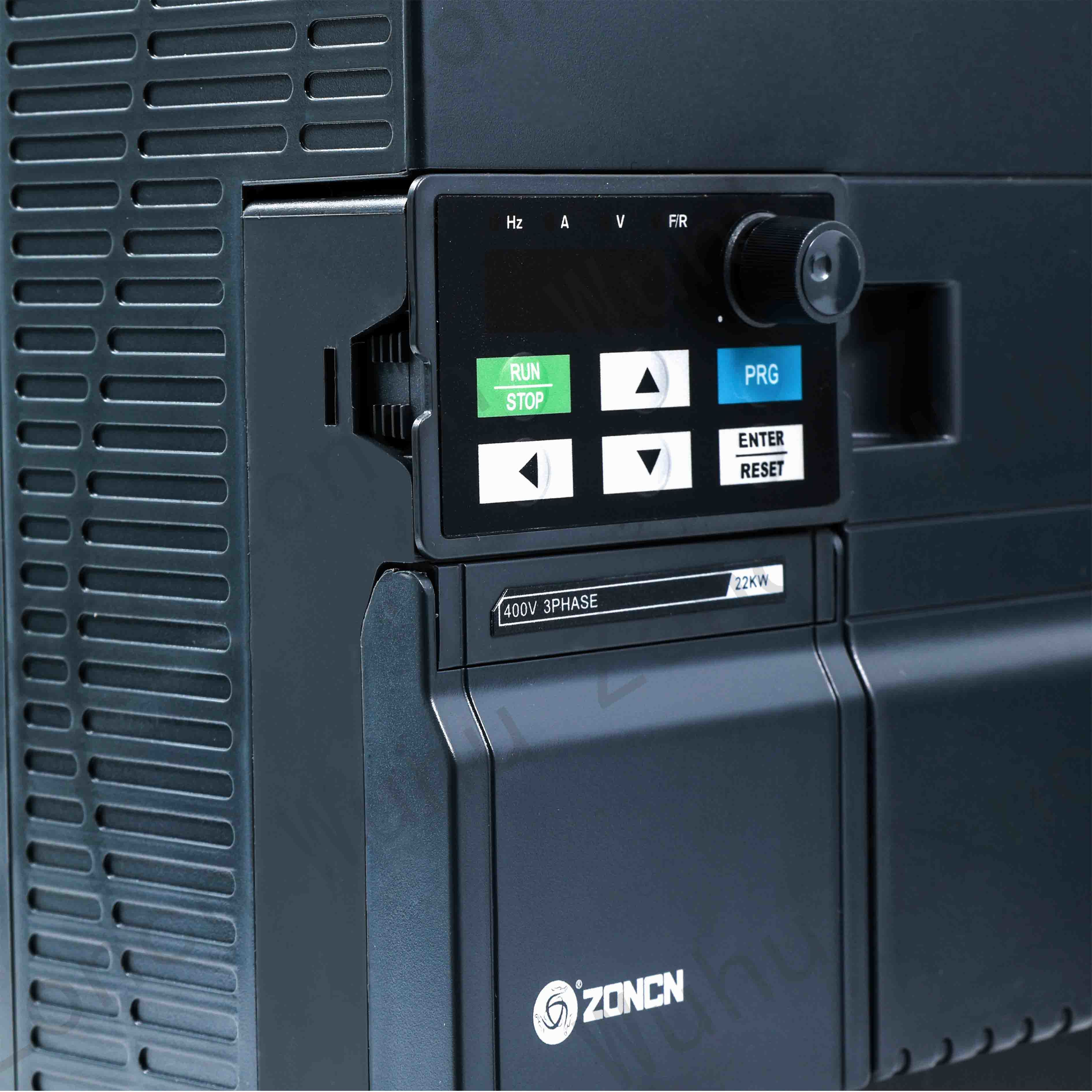

- Support detachable LED keyboard；
- High torque output ensures smooth startup of the motor during heavy loads；
- ZONCN independently developed IGBTs, with excellent performance；
- Power range: 220V 0.4 - 7.5KW 380V: 0.4 - 450KW；
2:VFD applications
- It has been widely applied in fields such as air compressors, food processing machinery, rubber production equipment, textile machinery, machine tools, water pumps, spindle motors, etc. For example, in the building materials industry, it cooperates with the multi-speed function to achieve precise temperature control of kilns; in hoisting equipment, it relies on the high dynamic response of vector control to avoid the risk of hook slipping.
3:ZONCN Company Profile
Wuhu Zhongchen Automation Equipment Co., Ltd., founded in [year], is a high-tech enterprise focusing on the industrial automation field. Headquartered in Jiujiang District, Wuhu City, Anhui Province, it is a subsidiary of Shanghai Zhongchen Electronic Technology Co., Ltd.
4:FAQ
Q1:What is your MOQ?
