| 起源の場所: | 中国 |
|---|---|
| ブランド名: | ZONCN |
| 証明: | KC; CE |
| モデル番号: | NZ100-1R5G-4 |
| 最小注文数量: | 1 個 |
| パッケージの詳細: | 内側:箱 外側:箱 |
| 受渡し時間: | 7~30 日 |
| 支払条件: | T/T,L/C,ウェスタンユニオン,Paypal |
| 供給の能力: | 1001000個/月 |
| 製品: | 可変的な頻度ドライブ | ブランド: | ZONCN |
|---|---|---|---|
| シリーズ: | NZ100 | 制御モード: | V/F制御 |
| PID制御: | 内蔵 | パワー: | 1.5KW/2HP |
| 過負荷防止: | はい | 過保護: | はい |
| 低電圧保護: | はい | 冷却モード: | 強制冷却 |
| ハイライト: | 1hp Variable Frequency Drives VFD,0.75kw Variable Frequency Drives VFD,2hp Variable Frequency Drives VFD |
||

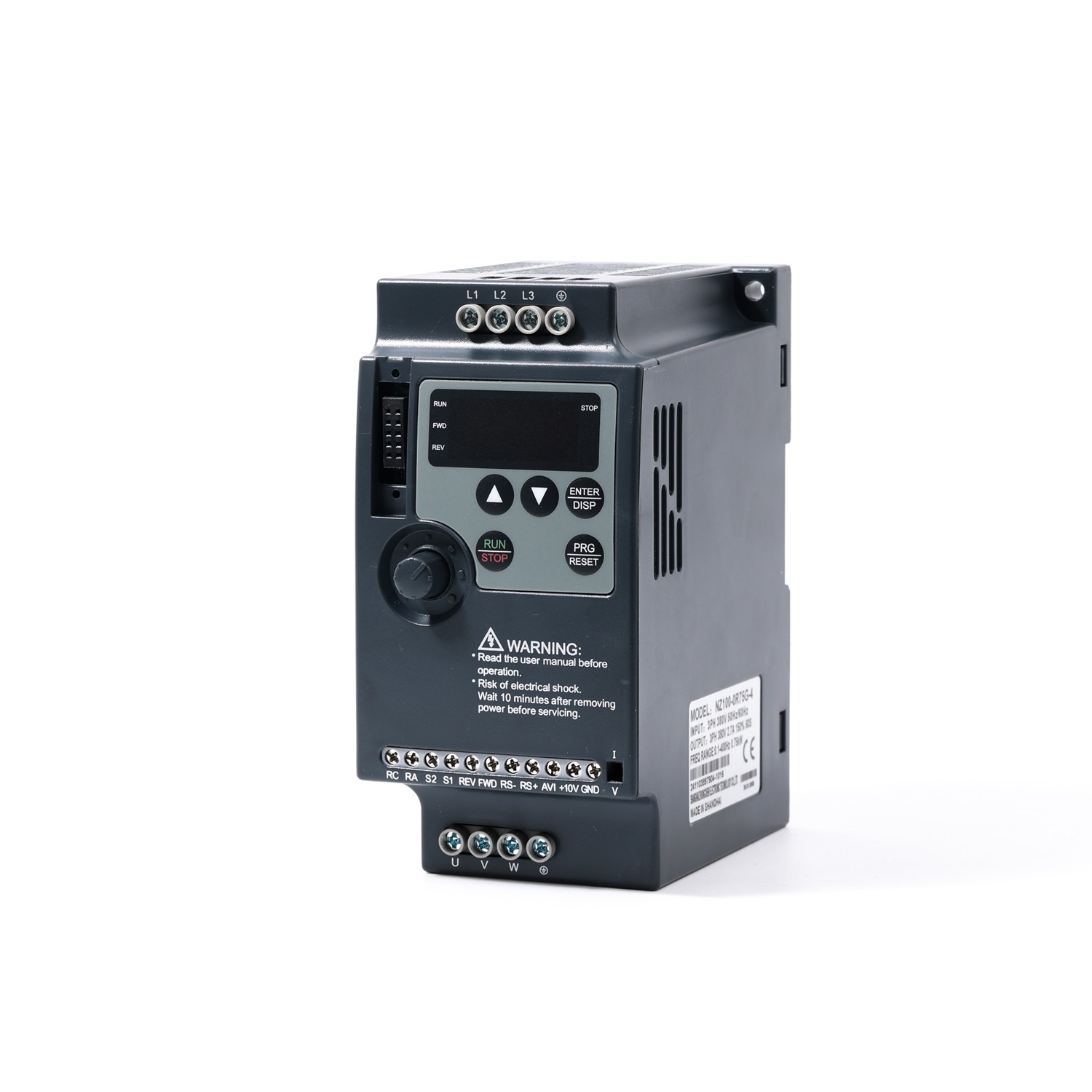

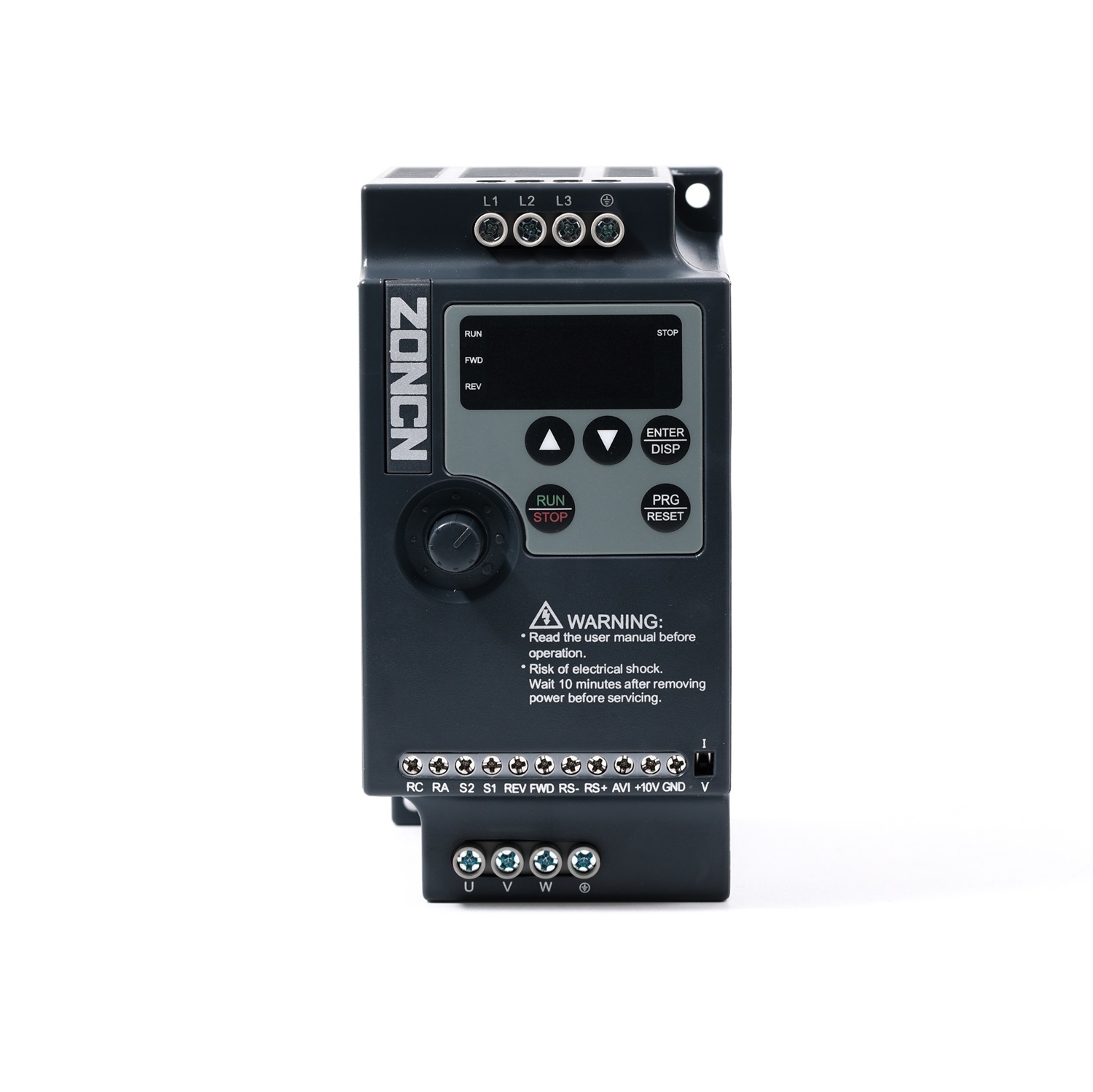

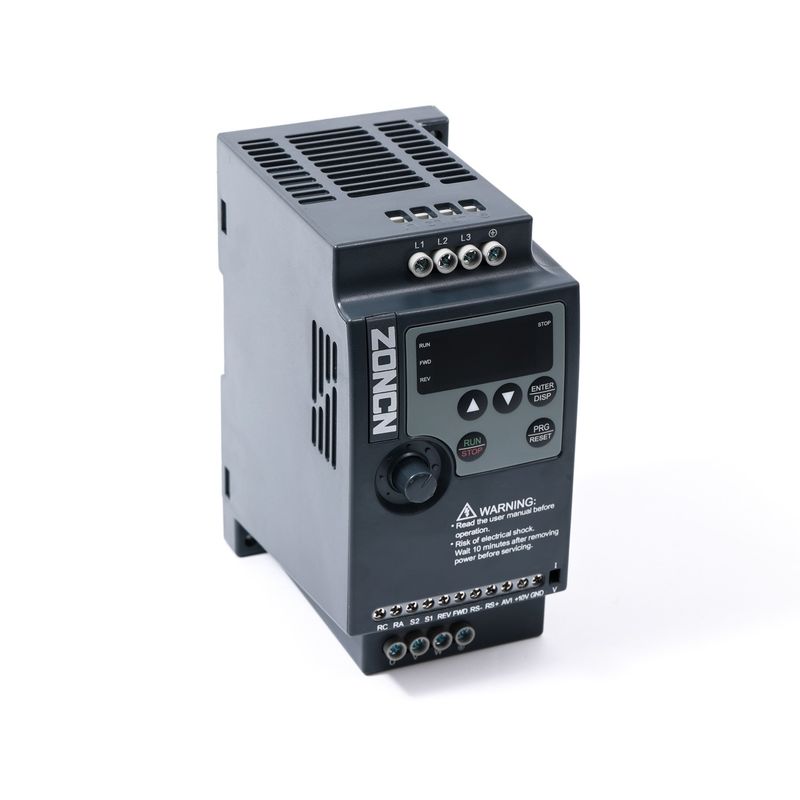

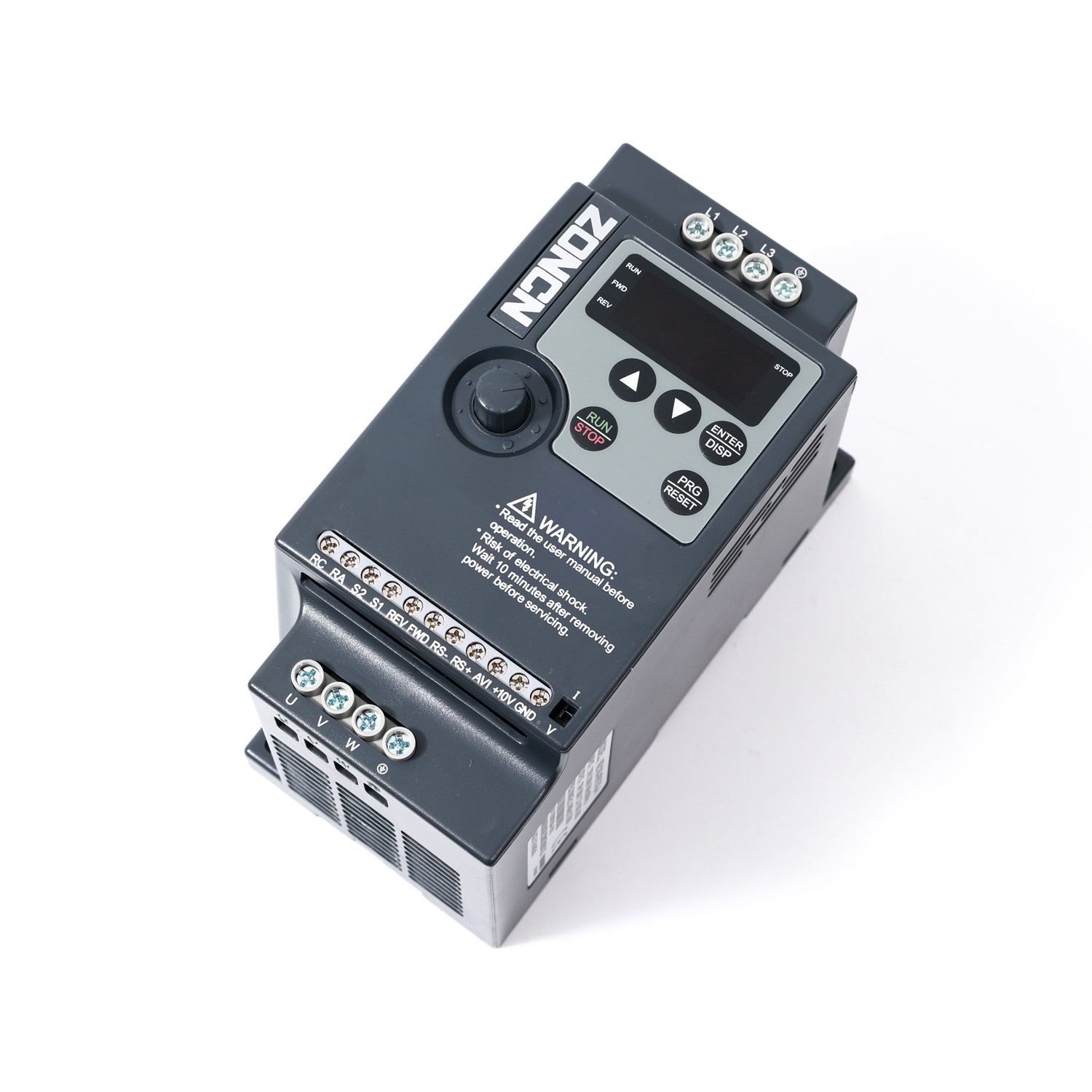

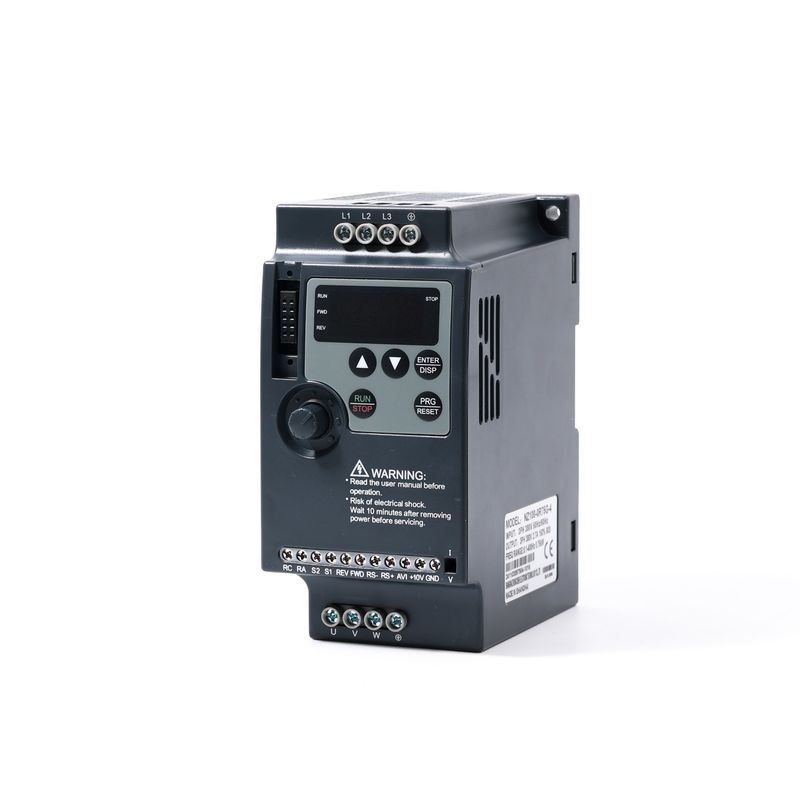

0.75kw Variable Frequency Drives VFD 380v Variadores De Frecuencia 1hp 2hp
ZONCN NZ100 Series VFD Features
Compact Size: This space-saving VFD requires 30% less installation space than standard models.
Energy Efficient: The intelligent VFD reduces energy consumption by up to 40% in pump/fan applications.
Easy Installation: This user-friendly VFD features plug-and-play wiring terminals.
Precise Control: The advanced VFD delivers ±0.5% speed regulation accuracy.
Strong Protection: This durable VFD offers IP20 protection against dust and particles.
Quiet Operation: The ultra-quiet VFD generates minimal audible noise (<65dB).
Multi-Functional: This versatile VFD supports PID control and PLC functions.
Wide Compatibility: The adaptive VFD works with 0.4-160kW motors.
Stable Performance: This reliable VFD operates in -10°C to 50°C environments.
Quick Response: The responsive VFD achieves 0.1s acceleration/deceleration.
Cost Effective: This affordable VFD provides premium features at competitive pricing.
Communication Ready: This VFD supports Modbus protocol.
Overload Capacity: This powerful VFD handles 150% overload for 60 seconds.
Multi-Protection: This safe VFD includes overcurrent/overvoltage safeguards.
Wide Application: The flexible VFD suits fan&pumps, conveyors, and packaging.
Long Lifespan: This quality VFD offers 100,000+ hours service life.
Global Certified: The compliant VFD meets CE, RoHS, standards.
This feature-packed VFD delivers big performance in a small package, making the NZ100 series VFD the ideal choice for compact automation solutions.
VFD inverter's Nameplate Description
VFD inverter's Specification
| VFD Model | Input Voltage | Output Power (KW) | Input Current (A) | Output Current (A) | Motor Equipped (KW) |
| NZ100-0R4G-2 | 1PH AC220V+/-15% | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ100-0R75G-2 | 0.75 | 8.2 | 5 | 0.75 | |
| NZ100-1R5G-2 | 1.5 | 14 | 7 | 1.5 | |
| NZ100-2R2G-2 | 2.2 | 23 | 11 | 2.2 | |
| NZ100-0R75G-4 | 3PH AC380V+/-15% | 0.75 | 3.4 | 2.7 | 0.75 |
| NZ100-1R5G-4 | 1.5 | 5.0 | 4.0 | 1.5 | |
| NZ100-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
| NZ100-3R7G-4 | 3.7 | 10.7 | 8.6 | 3.7 | |
| NZ100-5R5G-4 | 5.5 | 14.6 | 12.5 | 5.5 | |
| For powers above 5.5kw, NZ200 series with vector control is recommended. | |||||
