VFD、Servo と様々なモータードライバーの生産に焦点を当て
年間販売量 900,000 台以上
電力範囲:0.4kw~2000kw,電圧範囲:110v~10000v
サービス 配送 ネットワーク は 世界 を 覆っ て い ます
| Place of Origin: | China |
|---|---|
| ブランド名: | ZONCN |
| 証明: | KC; CE |
| モデル番号: | NZ100-3R7G-4 |
| 最小注文数量: | 1 PC |
| パッケージの詳細: | 内側:箱 外側:箱 |
| 受渡し時間: | 7~30 日 |
| 支払条件: | T/T,L/C,ウェスタンユニオン,Paypal |
| 供給の能力: | 1001000個/月 |
| Product: | variable frequency drives | ブランド: | ZONCN |
|---|---|---|---|
| シリーズ: | NZ100 | 制御モード: | V/F制御 |
| インプット: | 380V 三相 | パワー: | 5hp/3.7kw |
| 頻度: | 50HZ/60HZ | コミュニケーション: | RS485 （Modbus） |
| 保証: | 18ヶ月 | OEM: | はい |

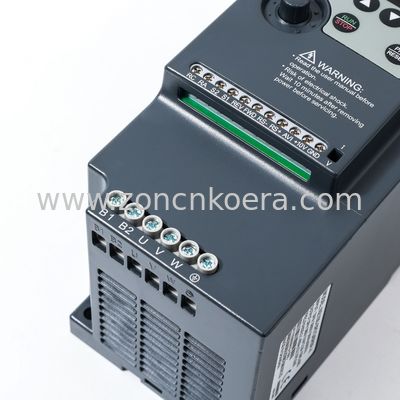

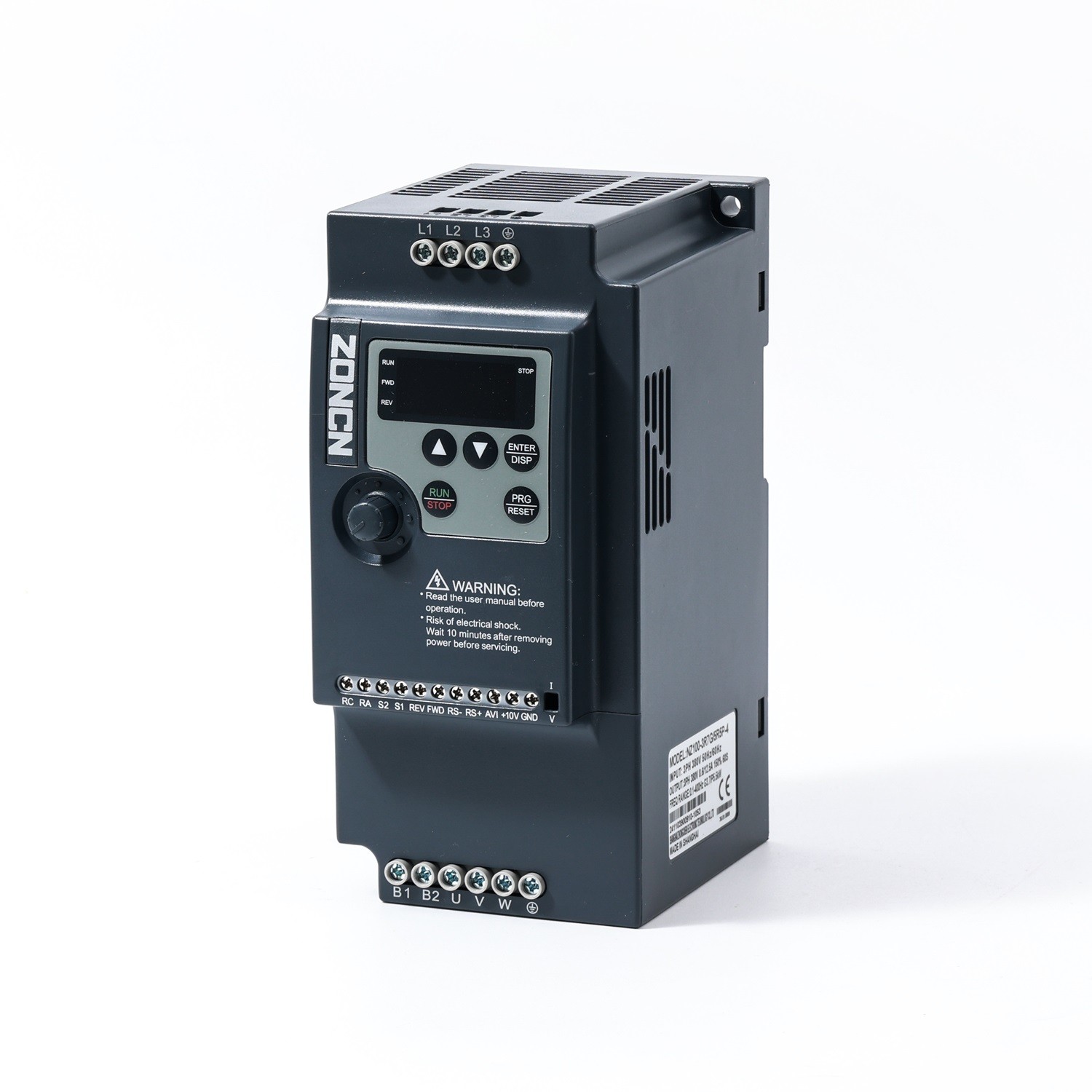

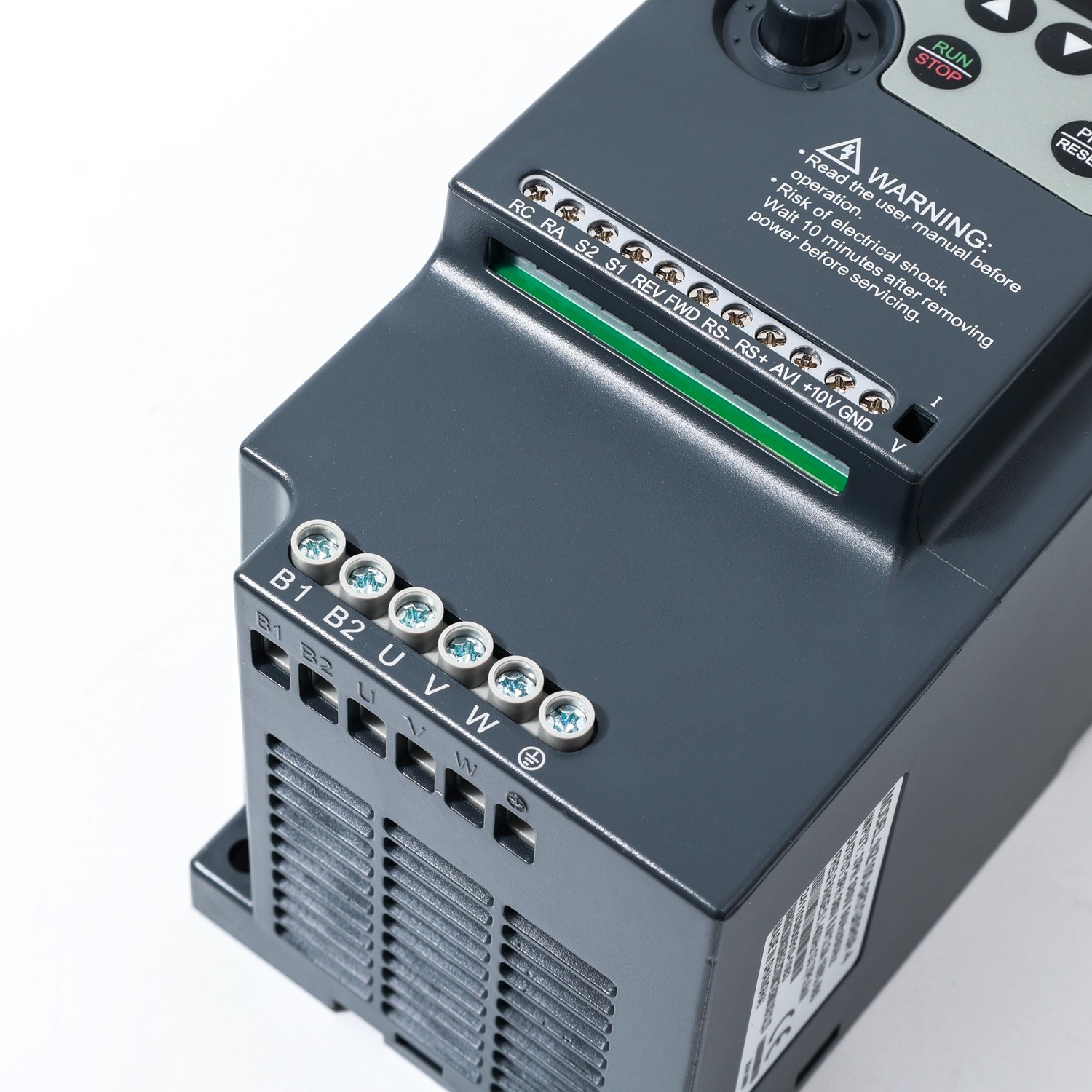

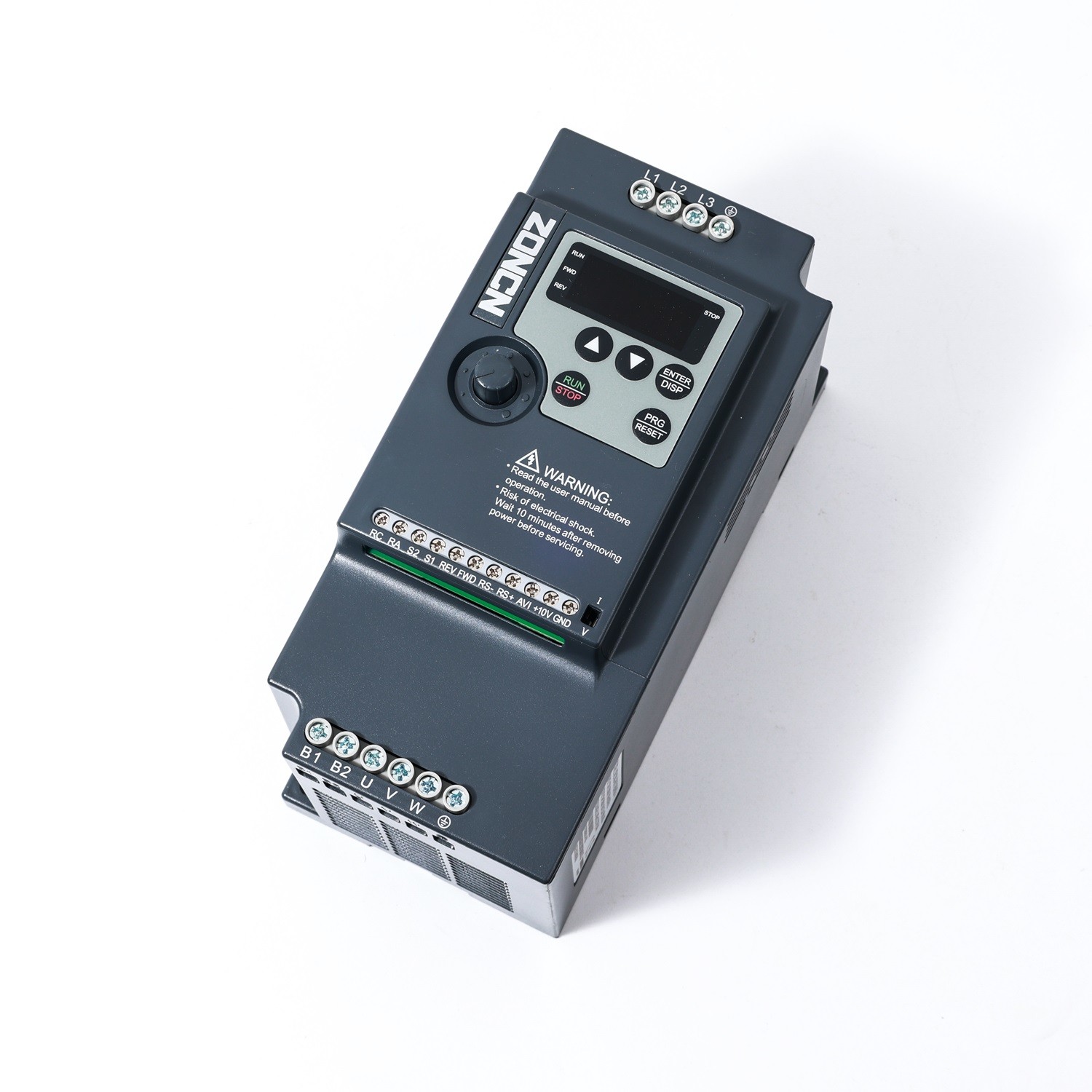

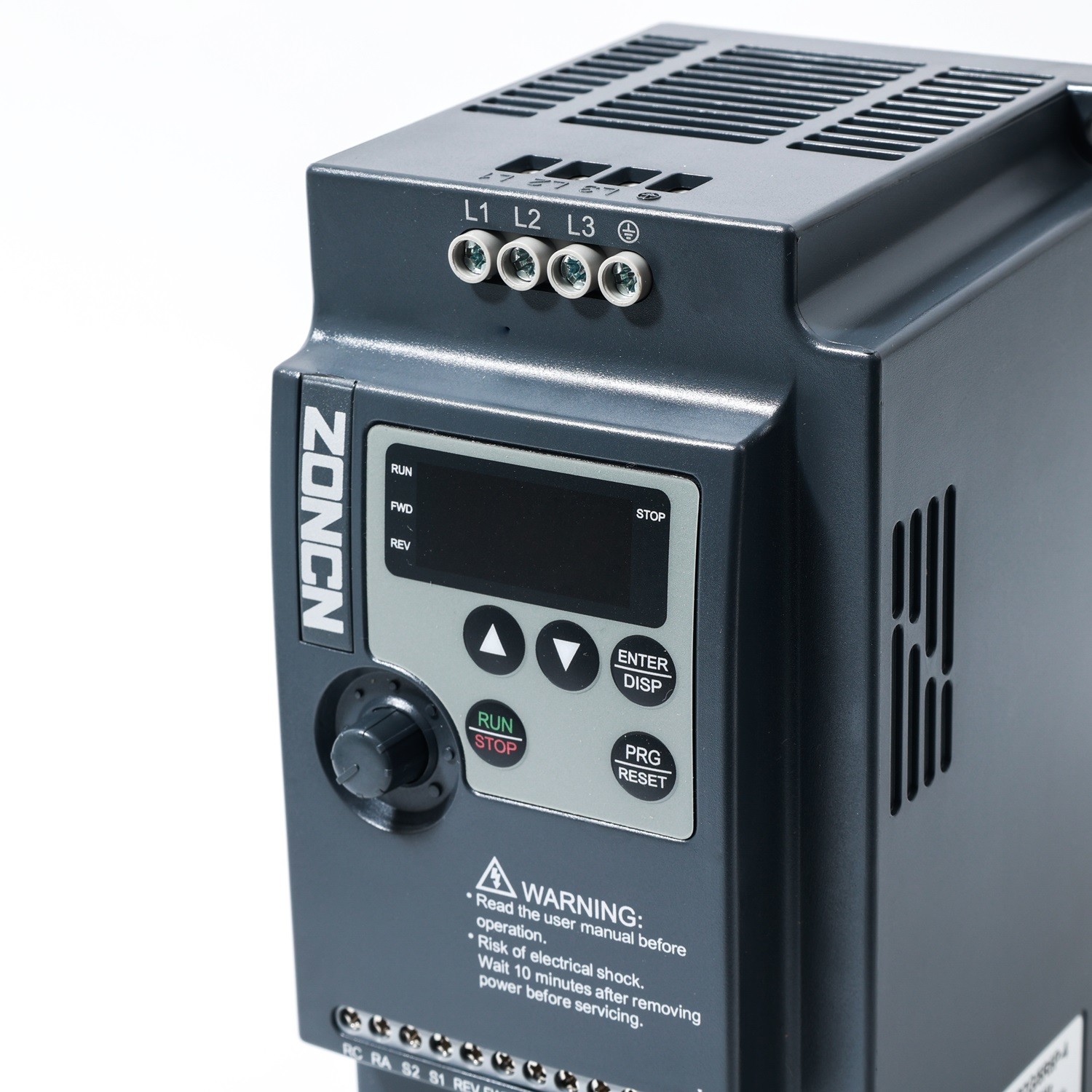

Inverter 380v Varibale Frequency Drives 3.7kw 5.5kw VFD
ZONCN NZ100 VFD inverter Features
The ZONCN VFD delivers affordable yet high-performance motor speed control. This VFD features a space-saving design, perfect for tight installations without sacrificing functionality.
Using advanced V/F control, the VFD ensures precise speed regulation and energy efficiency. Its built-in PID enhances accuracy for industrial processes. The VFD has external wiring terminals for easy setup and maintenance.
Operators can adjust speed via the integrated potentiometer, while a detachable remote keyboard allows flexible control. The VFD supports analog inputs (0-10V/4-20mA) and RS485 (MODBUS RTU/ASCII) for seamless automation.
For compact setups, 5.5KW models fit 35mm DIN rails. The VFD also supports OEM customization, adapting to specific needs in HVAC, conveyors, or pumps.
With smart features, rugged design, and energy savings, the ZONCN VFD is ideal for industrial motor control.
VFD inverter's Nameplate Description
VFD inverter's Specification
| VFD Model | Input Voltage | Output Power (KW) | Input Current (A) | Output Current (A) | Motor Equipped (KW) |
| NZ100-0R4G-2 | 1PH AC220V+/-15% | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ100-0R75G-2 | 0.75 | 8.2 | 5 | 0.75 | |
| NZ100-1R5G-2 | 1.5 | 14 | 7 | 1.5 | |
| NZ100-2R2G-2 | 2.2 | 23 | 11 | 2.2 | |
| NZ100-0R75G-4 | 3PH AC380V+/-15% | 0.75 | 3.4 | 2.7 | 0.75 |
| NZ100-1R5G-4 | 1.5 | 5.0 | 4.0 | 1.5 | |
| NZ100-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
| NZ100-3R7G-4 | 3.7 | 10.7 | 8.6 | 3.7 | |
| NZ100-5R5G-4 | 5.5 | 14.6 | 12.5 | 5.5 | |
| For powers above 5.5kw, NZ200 series with vector control is recommended. | |||||
VFD inverter's Dimension
VFD inverter's Wiring Diagram
VFD inverter's Workshop
VFD inverter's Application
